HSAA Synchronous HDLC to Asynchronous HDLC Converter

HSAA - Sync HDLC to Async HDLC Converter

Converts HDLC-Sync data to Async
Transport HDLC-Sync data via Async Channels
Async speeds to 115.2 Kbps
HDLC-Sync port to 128 Kbps
Internal or external clock generation

FEATURES
DESCRIPTION
SPECIFICATIONS

General
Controls and Indicators
Physical/Electrical

How to Order
Download a .PDF data sheet

FEATURES

Converts HDLC-Sync data to Async
Transport HDLC-Sync data via Async Channels
Async speeds to 115.2 Kbps
HDLC-Sync port to 128 Kbps

DESCRIPTION

The HDLC-Sync/Async Adapter performs the unique function of converting HDLC-Sync data to an asynchronous data stream for transmission through asynchronous data links. The Adapter provides the way to pass HDLC synchronous data over asynchronous data links such as satellites, ISM license-free radio modems, statistical multiplexers, and packetized routes. This adapter is the opposite of a typical sync/async adapter, designed for passing asynchronous data over synchronous data links. The HDLC-Sync/Async Adapter provides the reverse function, a more difficult requirement that was not available until the introduction of this DCB product. Applications for the HDLC-Sync/Async Adapter include:

Passing X.25 synchronous composite links through asynchronous modems, statistical multiplexer ports, terminal server ports, async wireless radio links.
Passing Frame Relay synchronous composite links through async modems, stat mux ports, terminal server ports, async wireless radio links.
Passing SDLC synchronous composite links through async modems, stat mux ports, terminal server ports, async wireless radio links.

The HDLC-Sync/Async Adapter is easy to set up, simple to use. Most applications can use the default settings if the async speed of 115.2 Kbps is correct. There are only two settings. One is the speed of the async composite port, ranging from 9600 to 115,200 bps (default is 115.2 Kbps). The other setting is the HDLC port, changing from NRZ (default, typical for Frame Relay and X.25) to NRZI (used for SDLC applications, although SDLC will normally operate in NRZ mode).

The HDLC Synchronous port clocking may be provided by the adapter or , may be provided by an external clocking device such as a modem eliminator or the DTE device. The HDLC-Sync-Async converter may be configured to either source or accept clocking.

The HSAA-01 is normally used in pairs. However, some customers have created computer programs that allow the use of a single HSAA in some installations as a stand-alone asynchronous HDLC to Synchronous HDLC converter. Please call for more details.

SPECIFICATIONS

General

All ports are RS-232, implemented in RJ-45 8-wire connectors
Async Composite rate: 115.2 Kbps default, 9600, 19200, 38400, 57600, 115200 bps
CTS flow control on async composite
Sync port to 128 Kbps.
Defaults to NRZ, NRZI option

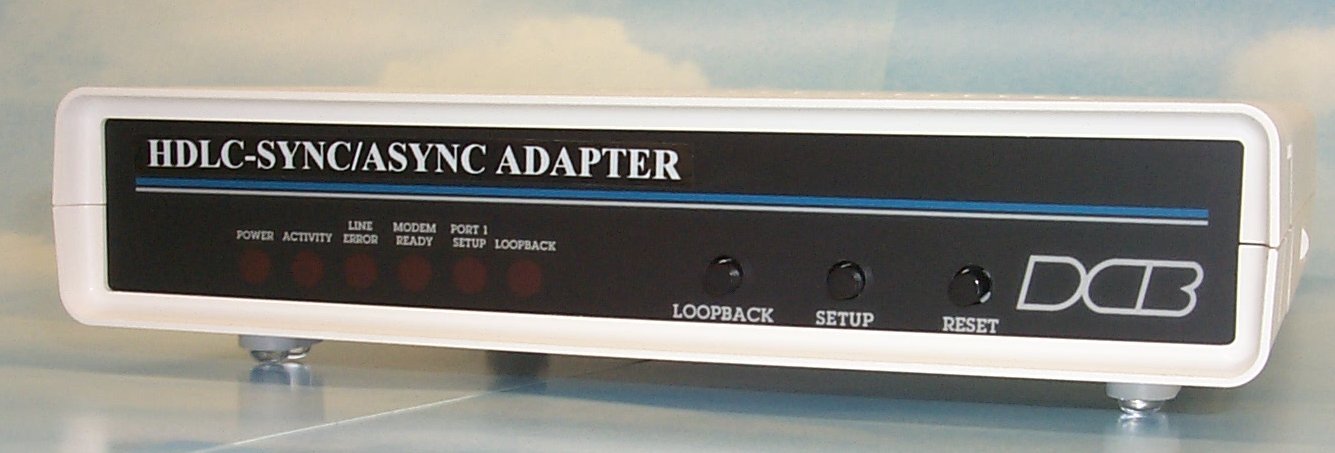

Controls and Indicators

Front panel push button for clock source, loopback, and reset
Side door accessible firmware cartridge for installing firmware upgrades
Setup via the rear panel management port
Power, Activity, Line Error, Modem Ready, Setup, Loopback LEDs

Interface: CCITT V.24, RS-232-D
Connector: RJ-45 (8-wire)

Physical/Electrical

Power requirements: 120 VAC, wall mount power supply
60 Hz, 18 Watts
10 1/4" x 9 3/4" x 2 1/4"
One pound

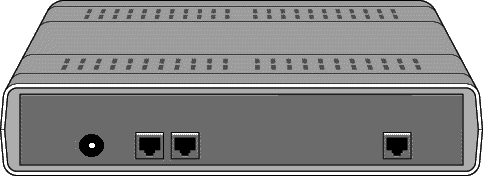

Rear view of HSAA-01

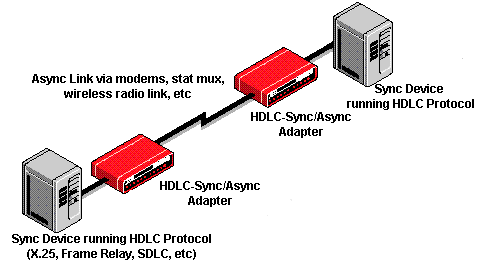

APPLICATION

How to Order

Due to the nature of this product, it is not offered in our online store. Please call toll free 800-432-2638 or use our on line contact form to discuss your application.

The HSAA-01 is normally used in pairs. However, some customers have created computer programs that allow the use of a single HSAA in some installations. Please call for more details.

HSAA-01	HDLC- Sync/Async Adapter	$1,000
RK-8/16	Rack mount	$ 75
