Map95 DS-0 Software Mapping Tool for Loop O-9500

Interactive Graphical Mapping Software for the Loop O-9500 Saves hours of time Visual GUI mapping Includes SNCP/UPSR mapping function Export/import map to and from spreadsheets Change granularity with the click of the mouse Uses SNMP v1 or SNMP v3 Operates with all current versions of Windows Licensed per controller Unlimited number of users per O-9500 PCs can have multiple instances of the Map95 mapping software running simultaneously, each to a different O-9500 Maps both of the O-9500 maps Indispensable productivity tool all users need to visualize the O-9500 mapping

Features Description Specifications How To Order Installation How it Works... Videos, Slide Shows, Description Download Link for Map-95 Software Download the Software License Information Document. Download the Manual

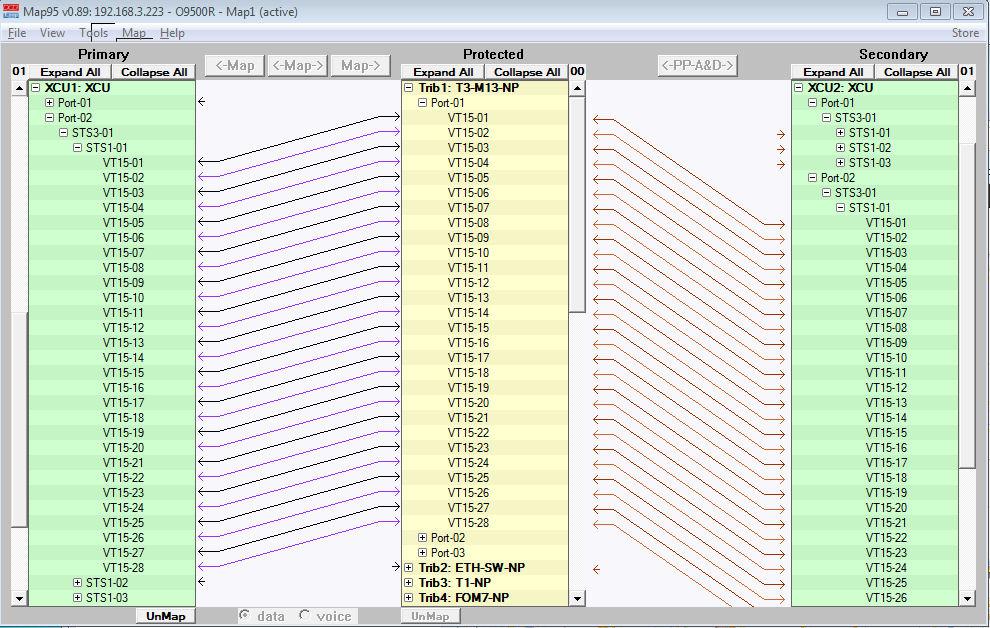

Graphical Interface Screen The screen shot below shows SNCP/UPSR mapping. The left hand side with lines in black and Purple is the Primary path. The right hand side with lines in light and dark Brown is the Backup path.

DESCRIPTION

Map95 software saves hours, if not days of time mapping O9500 SDH/SONET time slots. Reduces O9500 mapping errors by presenting the mapping in visual terms.

The O9500 uses a serial/Telnet terminal console to configure the system, feature cards and TSI (Time Slot Interchange mapping. SONET/SDH mapping often results in very complex cross connect maps. Map95 is a productivity increasing “must-have” tool for anyone mapping the O9500. The complexity is reduced by visually presenting the mapping. Hours of command line mapping can be reduced to minutes with Map95. Any user experienced with both the command line mapping and Map95 will immediately find Map95 to be a requirement tool, not a wish list item.

Map95 uses a simple highlight and click approach to replace dozens of key strokes required to map DS0s, E1/T1, DS3, STS1, STS3, VTs, etc.. One or more DS-0s are mapped with a single click on the “Map” button. Or one or more DS-0s are un-mapped with a single click on the un-map button. When the map is created, the links between the DS-0s are displayed on the screen. Map95 increases the speed and accuracy of O9500 mapping.

Map95 allows the user to map both O9500 maps. The O9500 Ethernet user console interface allows mapping local or remote O9500s. For secure operation, the O9500 supports inband mapping over the TDM backbone plus SSH Telnet and SNMP v3.

Map95 provides efficient visual mapping for the O9500. It also includes print screen capability to document mapping and change granularity with a mouse click for SDH/SONET groupings that have not yet been mapped

Map95 is licensed per O9500 controller, one license key for each controller in the unit, up to 2 controllers per unit. Map95 and the license files for O9500s can be distributed to an unlimited number of Windows workstation PCs.

Multiple copies of Map95 can run simultaneously. This allows a single work station to work with the maps of multiple O9500s at one time.

SPECIFICATIONS

• Order under part number "Map95"
• Quick and easy to install
• Licensed per O-90500 controller, by serial number. A license key is provided per each O-9500 controller serial number.
• Runs on MS Windows computers
• The Map95 software and key file(s) may be distributed to an unlimited number of PCs
• Software is distributed on a CD ROM or downloaded from the DCB web site
• PCs can run multiple instances of the Map95 software to connect to different O-9500s simultaneously
• Map95 uses SNMP v1 or SNMP v3
• Maps either or both of the two O-9500 maps
• Provides DS-0 mapping documentation, export in comma delimited (csv) format for spreadsheet use or text (txt) format
• Import a cross connect map into an O-9500 from csv spreadsheet files

Installation

The Map95 software is suppliled on a CDROM. Each O-9500 CPU card license is authorized using a unique software key supplied by DCB. The software is installed on a PC using a Windows installer program. PCs may run multiple instances of the Map95 mapping software simultaneously

Download the License Information Document.

How It Works

Using drag and drop along with click buttons, mapping is quickly added, modified, or deleted from the O-9500.

Select the two inteface slots from drop-down selection boxes.

Click buttons allow for Activate, Store, Clear, Voice/Data, Map, and Unmap.

Drag over time slots on one interface slot to map them to the other interface. Highlighted time-slots may be unmaped.

Questions? Phone us toll free at 800-432-2638 Due to the nature of this product, We prefer that you phone us and discuss your application prior to ordering. Please contact DCB for discounts on 50 or more copies of Map95. Please include the serial number(s) of your controller cards in the comments section during the checkout process
Item Number	Description	Price Each	Buy Now!
Map95	Map95 Software bundled per CPU controller card purchased from DCB	$ 600	Qty: 0 1 2 3 4 5
Map95-NonDCB	Map95 Software per CPU controller card not purchased from DCB. Requires a DCB support contract for Map95 and the O-9500 unit support. DCB, per agreement with Loop Telecom, is the North American TAC (Technical Assistance Cener) for O-9500 products.	$ 1170	Qty: 0 1 2 3 4 5
