Integrated Multi-Services Access Platform - PDH/SDH/SONET/PTN

Loop-O9500R-PTN IMAP-PTN


  • 6U height, full front access (ETSI) shelf
  • SDH/SONET VCn/VTn Cross-Connect Capacity: 14Gbps bidirectional non-blocking
  • PTN (CE and MPLS-TP) Switching Capacity: 100Gbps bidirectional non-blocking
  • Aggregate cross-connect modules (controller modules)
    • Up to STM-1/4/16 (OC-3/12/48) aggregate lines with software configuration
  • Hot-swappable cross-connect modules, tributary modules and power modules.

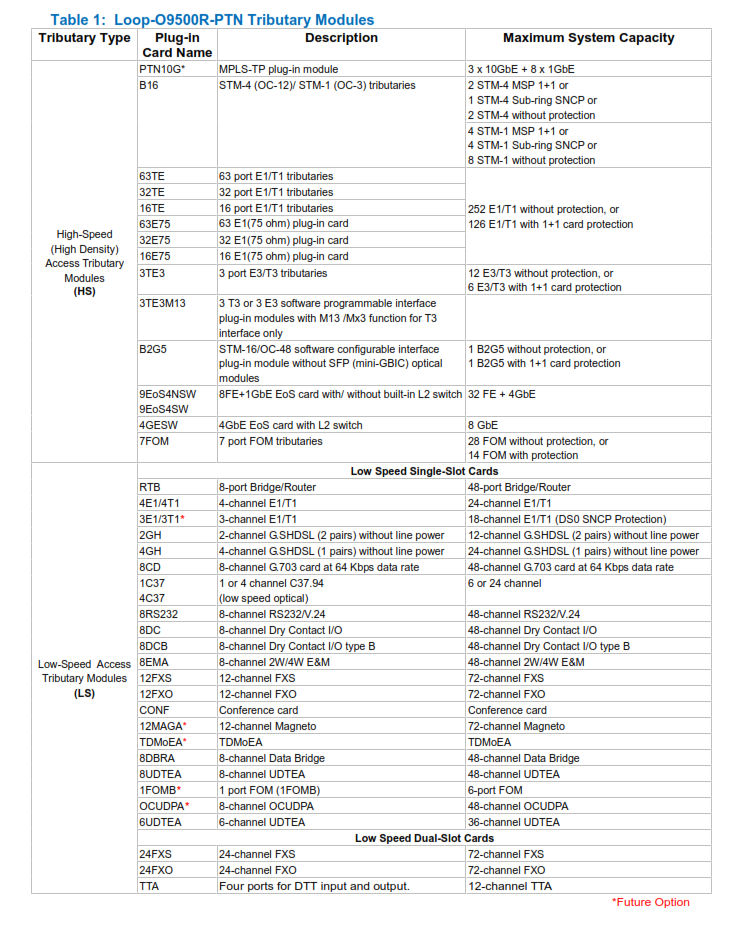

  • Tributary Modules
    • High-Speed (High Density) access tributary modules (HS)
    • Low-Speed access tributary modules (LS)
  • Power Modules
    • DC Module (-48/-125* Vdc)
    • Dual Power (1+1) Protection
  • Protection Scheme
    • Controller cross-connect unit (CCPA) protection, MSP (1+1), SNCP/UPSR Ring
    • Tributary protection
      • E1/T1: Card/Port (1:1) using Y-box, Line (1+1)
      • E3/T3: Line (1+1)
      • B155/622: MSP, SNCP/UPSR
      • Ethernet
      • FOM: Line (1+1)
      • 4GEoSDH: Card
      • PTN Swtich Fabric 1:1 *
    • Network Protection
      • MSP 1+1
      • SNCP/UPSR
      • Ethernet Ring Protection (ERPS G.8032)
      • Link Aggregation (Inter and Intra board)
      • LSP Linear Protection (1+1/1:1)* sub 50ms
    • External/Internal/Line timing source with SSM
      • SyncE
      • IEEE 1588
      • TDM clocks
    • Ethernet over SDH/SONET supports GFP, LAPS, VCAT, LCAS and non-LCAS
    • Alarm suppression, masking and reports
    • Management
      • Console port, VT100 menu-driven
      • SNMP Port
      • Telnet and SSH
      • Centralized management with Loop’s EMS/NMS over DCC channel
      • Loop-iNET GUI EMS
      • Loop-iNMS with full FCAPS and end-to-end circuit management and diagnosis
    • RoHS compliant


Description
Specifications

How to Order
Panel Illustrations
Application Notes
Application Drawings
30 Page Detailed Printable Data Sheet

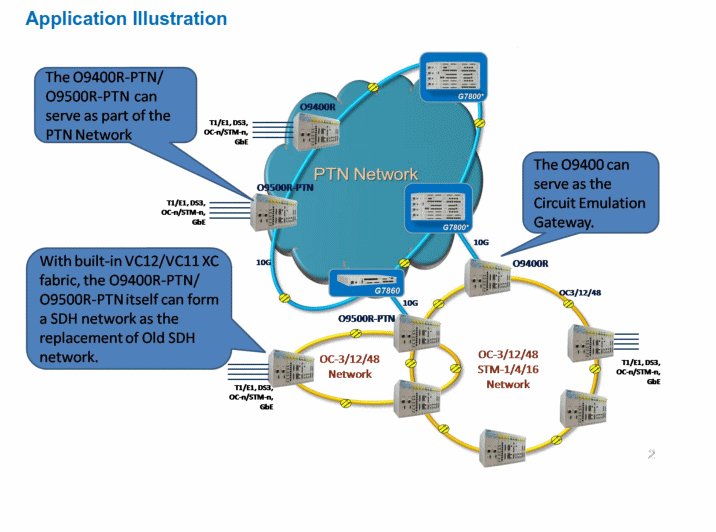

Typical Application, Click to Enlarge

DESCRIPTION

The Loop-O9500R-PTN IMAP-PTN (Integrated Multi-Services Access Platform) is an economical integrated solution supporting PDH/SDH/SONET/PTN simultaneously on the same platform. It’s designed to support the DS0 access and PDH interfaces to be freely carried over SDH/SONET or/and PTN (MPLS/CE) uplink.

SDH/SONET uplink is capable of supporting either STM-1/4/16 or OC-3/12/48. While the access is provided through either a non-blocking VCn/VTn cross-connect with HS tributary modules or through an additional non-blocking DS0 cross-connect fabric with LS tributary modules.

With the PTN10G interface card, the O9500R-PTN will be able to further transport PDH/SDH/SONET over PSN network. With O9500R-PTN as a gateway between SDH/SONET and PTN, existing SDH/SONET network user will be able to migrate from SDH/SONET/PDH to PTN network, smoothly and seamlessly.

With up to 4 STM-1/4/16 (OC-3/12/48) aggregate interfaces on cross-connect modules and 8 STM-1 (OC-3) interfaces on tributaries, the Loop-O9500R-PTN offers service providers a versatile protection schemes including SNCP(UPSR) and MSP(1+1) protection for both ring and linear network topologies. The O9500R-PTN can work with the Loop-O9100 and Loop-O9400 for SDH/SONET networking.

The non-blocking VC11/VC12/VC3/VC4 (VT1.5/VT2/STS-1/STS-3) crossconnect capability on High Speed (HS) is up to 20 VC4. The HS tributary modules include optical STM-1/4 (OC-3/12), E3/T3, E1/T1 interfaces, FOM and Fast Ethernet/Gigabit Ethernet over STM-1/4/16 (OC-3/12/48). Ethernet signals are mapped onto STM payload through standard techniques such as GFP, LAPS, VCAT, LCAS, and non-LCAS. These HS modules are identical to those used in the rack version of the Loop-O9400.

The uplink non-blocking DS0 cross-connect to HS is up to 21 E1 or 28 T1. The non-blocking DS0 cross-connect capability on Low Speed (LS) is up to 768 DS0. Through a full non-blocking DS0 cross-connect and together can act as a mini DACS. The modules include variety of TDM, IP, and voice interfaces detailed on next page. All LS modules are identical to those used in rack version of the Loop-AM3440.

All interfaces are fully compliant with the relevant ETSI standards and ITU recommendations. The O9500R-PTN provides full Operation, Administration, Maintenance and Provisioning (OAM&P) functionality. Users can easily operate the O9500R-PTN locally or remotely for centralized management with Loop-iNET (EMS) and Loop-iNMS (Integrated NMS).
* Future Option


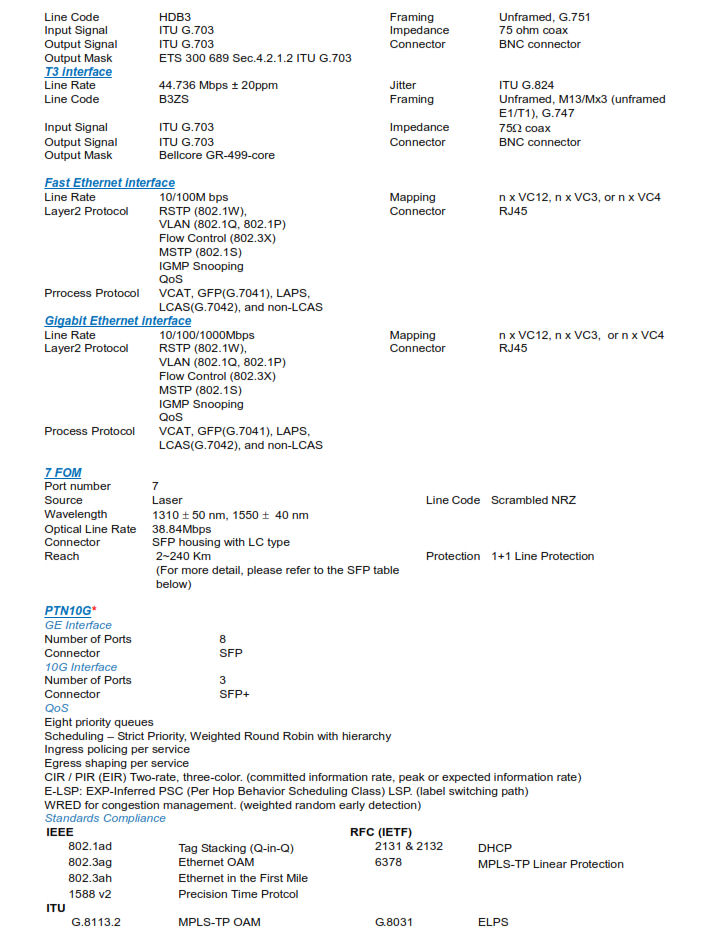

General Specifications

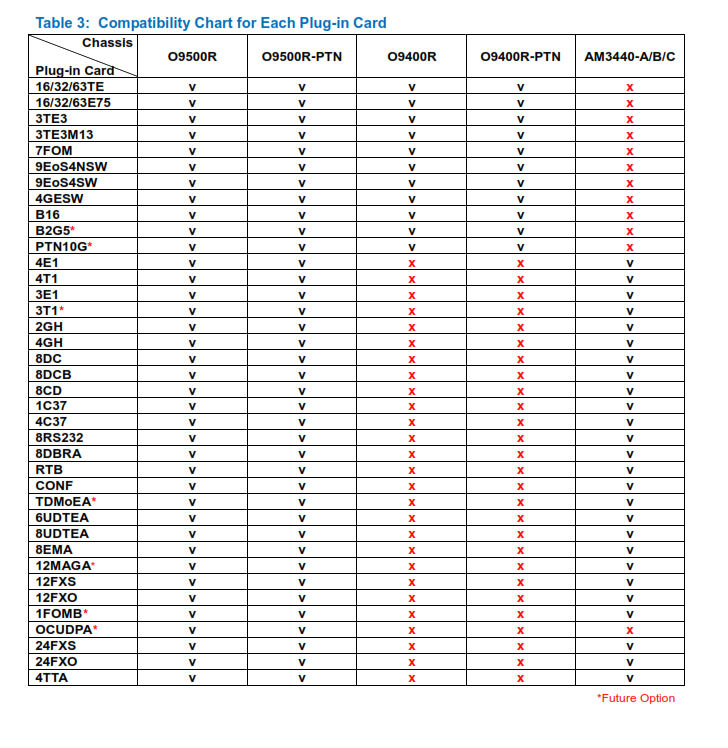

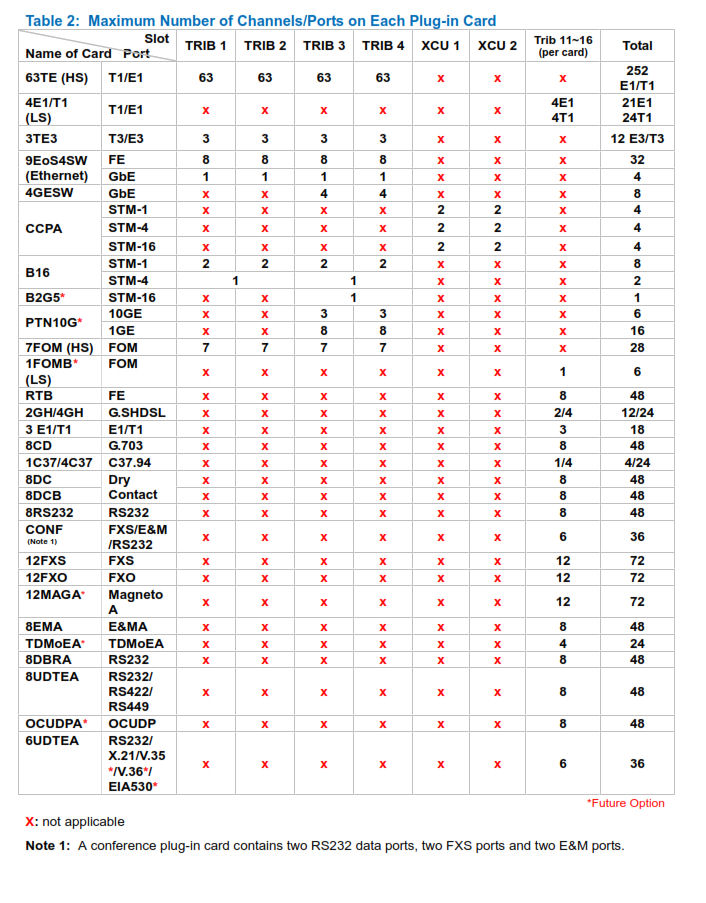

For detailed information on the many interface cards available for this product, please click here to download the 30 page printable data sheet.

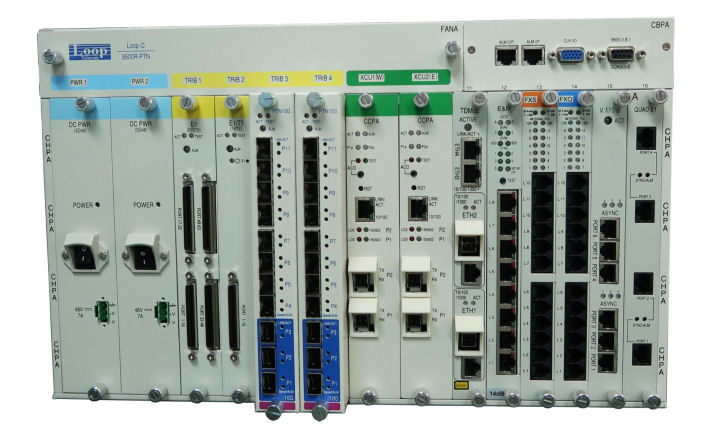

Typical Front Panel
