Loop IP-6763 TDMoEthernet Aggregator

T1, E1, STM-1, OC-3, STM-4, OC-12, GigE over Ethernet, MPLS, MetroE

Loop IP-6763 TDMoEthernet Aggregator

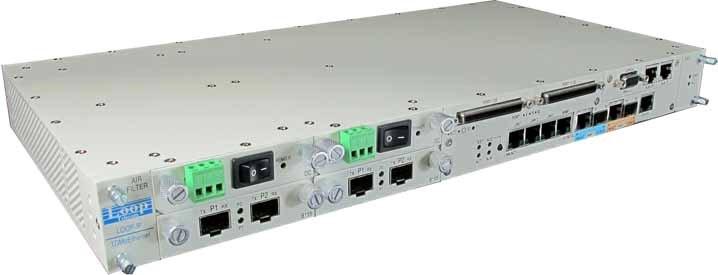

Front View

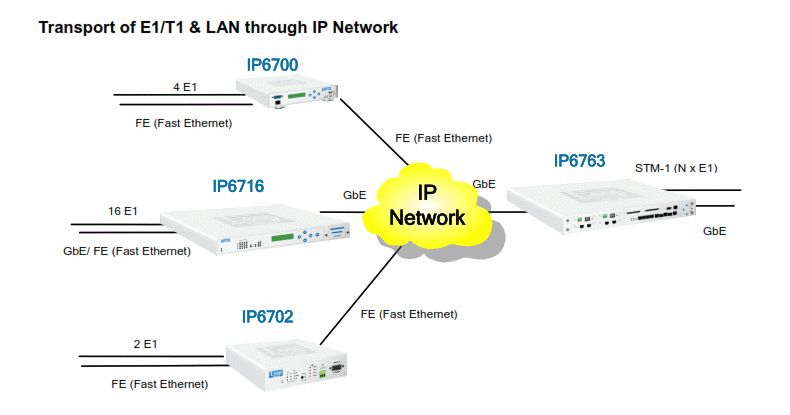

Transport T1 /E1 via an IP Network
Loop IP-6763 Typical Application

Description

The Loop-IP6763 TDMoEthernet Aggregator provides a cost-effective solution which allows operators to transport up to 32 E1/T1, 4 STM-1/OC-3 or 1 STM-4/OC-12* along with 4 Giga LAN traffic over existing IP/MPLS* or Metro Ethernet network. The E1/T1 SCSI interface is fixed on main board while there are two hot-swappable tributary slots for STM-1/OC-3 or STM-4/OC-12* plug-in card types. As the core communications network migrates from legacy TDM to IP/MPLS or Metro Ethernet, this product allows you to leverage existing capital equipment and operations efficiently and at a relatively low cost.

Loop-IP6763 TDMoEthernet Aggregator converts the TDM data stream and timing information from both PDH and SDH/SONET ports into packets and transmits to the connected IP/MPLS* or Metro Ethernet network via dual combo Gigabit Ethernet WAN ports with 802.3ad Link Aggregation capability. Another Pseudowire device converts the received packet stream back to original PDH and SDH/SONET data stream along with the original timing information.

Loop-IP6763 TDMoEthernet Aggregator employs various Pseudowire Encapsulation protocols such as SAToP, SONET/SDH CEP, CESoPSN, MEF-8*. To compensate the inherent Packet Delay Variation (PDV) of IP/MPLS* or Metro Ethernet network, Loop-IP6763 TDMoEthernet Aggregator utilizes Jitter Buffer Control and can compensate up to 512 ms with G.823/G.824 Traffic Interface conformance (+/- 1ppm).

Security is ensured via SSHv1/SSHv2 function and SNMPv1/v3 management.


Features

  • Mechanics and Electrics
    • 1U height, ETSI shelf
    • Replaceable FAN and Air Filter
    • Power Module: -48Vdc (Over-voltage protection and Load sharing)
  • WAN Aggregate Interface
    • 2 Combo GbE with SFP housing and RJ45 Connector
    • 802.3ad Link Aggregation
    • RSTP/MSTP
  • User Tributary Interface
    • 2 slots for hot-swappable plug-in cards:
      • Up to 2 Dual STM-1/OC-3 cards with MSP(1+1)/cross-card MSP(1+1)
      • Up to 1 Dual STM-4/OC-12* card
    • Ethernet Tributary interface:
      • 3 x 10/100/1000 BASE-T Ethernet ports 1 user-selectable Ethernet/SNMP port
      • Speed/Duplex Auto-negotiation
      • 802.3ad Link Aggregation
    • On-board E1/ T1 Interface:
      • 8*/16*/32 E1/T1 with SCSI connector
  • L2 Switching
    • 10G non-blocking switching capacity
    • Jumbo frame size up to 13K bytes
    • IS-IS packet transparency*
    • VLAN
      • Maximum 4K VLAN ID
      • Support C-VLAN/S-VLAN tag adding and removing on Pseudowire
      • 802.1q Port-based VLAN on Ethernet port
      • VLAN-based packet filtering
      • upport Q-in-Q
    • Support 802.1d MAC Learning (max. 26K)
    • Support 803.3x Flow control on input ports
    • Support 802.1D STP, 802.1s MSTP, 802.1w RSTP
    • Support IGMP Snoopingv2 (RFC 2236)
  • QoS
    • Ingress Rate Limiting per Ethernet port with 100kbps granularity
    • Ethernet Network Level:
      • 3-bit Priority Code Point - PCP field within 802.1P/802.1Q Ethernet frame - CoS
      • 8 priority queues per port
    • IP Network Level:
      • 8 priority queues per port
      • 6-bit DiffServ Code Point -DSCP field - ToS
    • Scheduling Algorithm
      • Strict Priority (SP)
      • Weighted Round Robin (WRR)
      • Deficit Weighted Round Robin (DWRR)
    • Congestion Avoidance
      • Random Early Detection (RED)
      • Weighted Random Early Detection (WRED)
  • Pseudowire Capability
    • Support SAToP, SONET/SDH CEP, CESoPSN, MEF-8*
    • Support framed/unframed E1/T1
    • Support VC4 transparent/channelized STM-1 and STS3C transparent/channelized OC-3
    • Support TDM traffic emulation over MPLS*, UDP/IP and Metro Ethernet Network*
    • Support Timeslot Grooming
    • Backplane capacity: up to 252xVT11/VT12 bandwidth
    • Maximum 512 Pseudowires
    • Up to 32 Pseudowires can apply Adaptive Clock Recovery (ACR) mechanism
    • PDV Compensation Depth: up to 512 ms
    • Jitter Buffer Size: up to 256 frames
    • Supports IPv4 and IPv6* addressing
    • Excel calculator is provided
    • Pseudowire Diagnostics Function
      • ARP, Ping and Trace Route
      • IP – MAC Table Display
      • Pseudowire Information
        • Maximum 4K VLAN ID
        • Packet Creation Time (ms)
        • Jitter-Tolerance Delay (ms)
        • Single-Trip Delay (ms)
        • Total Frame Length (bytes)
        • Packet per second
        • Required Bandwidth (Mbps)
        • Header Overhead (%)
        • Remaining WAN Bandwidth (Mbps)
        • Remaining Memory
      • Jitter and Wander
        • PPM version: conforms to G.823/G.824 Traffic Interface (+/- 1ppm)
      • Timing Reference
        • Internal
        • External
        • Line(both PDH and SDH)
        • Adaptive Clock Recovery
      • OAM Capability
        • Support 2 SNTP Timing References
        • Multi-color LED indicators
        • Alarm Relay
        • ACO (Alarm Cutoff) button
      • Management Interface
        • 1 user-selectable Ethernet/SNMP Port
        • SNMP v1/ v3
        • DB9 Console port with VT100 menu
        • Telnet and SSHv1/SSHv2
        • C-VLAN/S-VLAN tag on management traffic
        • Support IPv4 Routing & IPv6* Routing over DCC channel on SDH/SONET interface
          • Static Route, RIP I/II, OSPFv2*
          • RIPng*, OSPFv3*
        • Standards Compliance
          • SAToP, SONET/SDH CEP, CESoPSN, MEF-8*

            * Future Option


  • General Specifications

    For more detailed information and ordering specifics on the many interface cards available for this product, please click here to download the multi-page printable data sheet.

    SFP Optical Module

  • Please refer to SFP optical module brochure for detail.

    WAN Aggregate Interface

  • Number of Ports : 2 Combo GbE (Including Electrical and Optical ports; Auto-detection of SFP for highest priority) Electrical Port
    • Speed:
      • 10/100/1000 BaseT (802.3i, 802.3u, 802.ab)
      • Auto-negotiation (10/100/1000)
      • Auto MDI/MDIX
      • Full/half Duplex
    • Connector: RJ45
    • Optical Port
      • Speed: 100/1000 BaseFX (802.3u, 802.3z)
      • Connector: SFP

    Ethernet Tributary Interface

    • Number of Ports: 4
    • Speed:
      • 10/100/1000 BaseT (802.3i, 802.3u, 802.ab)
      • Auto-negotiation (10/100/1000)
      • Auto MDI/MDIX
      • Full/Half Duplex
    • Connector: RJ45

    STM-1/OC3 Tributary Interface

    • Number of Ports: 2
    • Line Rate: 155.52 Mbps
    • Line Code: Scrambled
    • Jitter and Wander: ITU G.813

    STM-4/OC12 Tributary Interface*

    • Number of Ports: 2
    • Line Rate: 622.08 Mbps
    • Line Code: Scrambled
    • Jitter and Wander: ITU G.813

    E1 Tributary Interface

    • Number of Ports: 8 or 16 or 32, manufacture option
    • Input Signal: ITU G.703
    • Line Rate: 2.048Mbps ± 50 ppm
    • Output Signal: ITU G.703
    • Line Code: AMI/HDB3
    • Jitter and Wander:ITU G.823
    • Framing: ITU G.704 (CRC: on/off, CAS: on/off, Unframed)
    • Connector: SCSI-II 68 pin

    T1 Tributary Interface

    • Number of ports: 8 or 16 or 32, manufacture option
    • Input Signal: DS1
    • Line Rate: 1.544Mbps +/- 32 ppm
    • Output Signal: DS1 with LBO Setting
    • Line Code: AMI / B8ZS (selectable)
    • Surge Protection: GR-1089 Intra-Building
    • Framing: D4 / ESF/ OFF (clear channel)
    • Pulse Template: ITU G7.03
    • Connector: SCSI-II 68 pin

    Timing Source

    • Primary/Secondary Clock: Internal, External, Line Clock from SDH/SONET, Line Clock from E1/T1and Adaptive Clock Recovery

    External Timing

    • Input Signal: E1, T1, 2.048 MHz, 1.544 MHz (user selectable)
    • Output Signal: E1, T1, 2.048 MHz, 1.544 MHz (user selectable)
    • Connector: RJ48C, 2.048MHz, 1.544MHz

    Alarm Input/Output

    • Input Port
      • Number of Ports: 1
      • Connector: RJ45
      • Internal Resistance: 1000 ohm
      • Activation Current: 3mA
      • Deactivation Current: 1.5mA
    • Output port
      • Number of Ports: 4
      • Connector: RJ45
      • Initial Insulation Resistance: Minimal 1000 ohm (at 500Vdc)
      • Maximum Current: 1A for 30Vdc, 0.3A for 125 Vac
  • Network Management

    • Console Port
      • Electrical: RS232, DCE
      • Terminal: Menu-driven VT-100
      • Connector: DB9, female
    • SNMP Port
      • Protocol: SNMPv1/v3*
      • Connector: RJ45 at front panel

    Performance Monitors

    • Performance Store: The last 24-hour performance in 15-minute interval
    • Performance Reports: Date &Time, Error Block (EB), Background Block Error (BBE), Error Second (ES), Burst Error Second (BES), Severe Error Second (SES), Unavailable Second (UAS)

      • System Performance RX-Lost, Cell-Lost, Jit-UR, Jit-OR
      • SDH/SONET Performance RS-BIP(B1), MS-BIP(B2), MS-REI, HP-BIP(B3), HP-REI, LP-BIP(V5), LP-REI(V5)
      • E1/T1 Performance CRC, OOF

    Alarm Reports

    • Alarm History:
      • System Alarm
        • Alarm Cut Off, Power Loss/Uneqp, Fan Fail, Overheat, System Clock Loss, Log on and Log off, Optical Port Uneqp, Ethernet Link, Card In, Card Out, Card Type Mismatch, Card Port Number Mismatch, Card Fail, Card Registration, MSP Switch, SFP Tx Fail, SFP Rx Fail, SFP Temperature
      • SDH/SONET Alarm
        • SDH: Line, HO-Path, LO-Path
        • SONET: Line, STS-Path, VT-Path
        • Multiplexing: E1/T1 LOF, AIS, UAS, RAI/YEL
      • E1/T1 Alarm*
        • LOS, LOF, AIS, UAS, RAI/YEL
    • Alarm Queue: Contains up to 200 alarm records of latest alarm types, alarm severity, date and time.
    • Currently-Active Alarm Summary (CAAS)

    Diagnostics Test

    • SDH/SONET
      • Loopback: Local loopback, Line loopback Loopback:
    • E1/T1
      • Local loopback
      • BERT: To WAN direction/To Line direction, N*64K or Full, 2^11-1, 2^15-1, 2^20-1

    Power

    • -48 Vdc Module: -36 to -72 Vdc
    • Consumption: Maximum 65 W

    Physical and Environmental

    • Net Weight: 4.0 Kg
    • Dimensions: 438 x 44 x 225.5mm (W x H x D)
    • Temperature: 0 to -50°C (operational)
    • Humidity: 5-95% RH (non-condensing)
    • Mounting: Desk-top stackable, 19"/23" Rack mountable

    Standards Compliance

    • IEEE
      • 802.1d STP and MAC Learning
      • 802.1p Priority Code Point
      • 802.1q VLAN Tagging
      • 802.1s MSTP
      • 802.1w RSTP
      • 802.1ad Q-in-Q
      • 802.1ag Ethernet CFM
      • 802.3i 10 BaseT
      • 802.3u 100 BaseT, 100 BaseFX
      • 802.3x Flow Control
      • 802.3ab 1000 BaseT
      • 802.3ab Link Aggregation
      • 802.3z 1000 BaseFX
    • IETF
      • RFC3411 SNMPv1, v3
      • RFC2236 IGMP Snooping v2
      • RFC4553 SAToP
      • RFC4842 SONET/SDH CEP
      • RFC5086 CESoPSN
    • ITU
        G.703 E1/T1
      • G.704 DS0
      • G.823/G.824 Traffic and Synchronous Interface
      • PWE3 Pseudo Wire Emulation Edge-to-Edge
    • MEF 8* CESoETH
    • RoHS Restriction of Hazardous Substances Directive

    Certifications

    • EMC/EMI: EN55022 Class A*, EN55024*, FCC15*
    • Safety: EN60950-1

      *Future Option

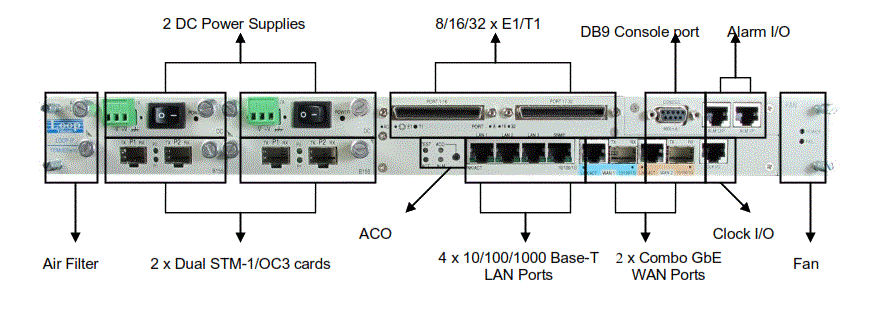

    Typical Front Panel


    Application Illustrations

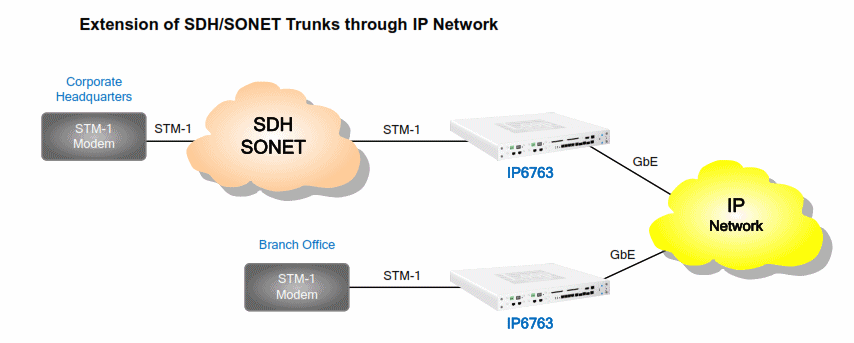

    Transport T1 /E1 via an IP Network Extension of SONET/SDH via an IP Network

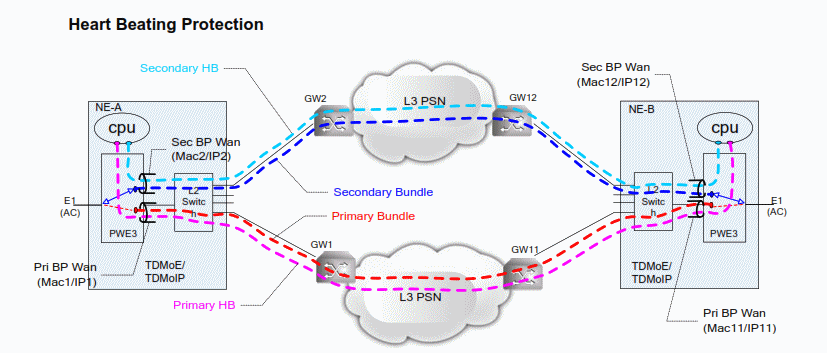

    Heart Beat Protection

    Application Notes

    These application notes cover many aspects of Integrated Access Multiplexer applications. While some are specific to particular products, many are applicable to most any of our channel bank, IAD, or TDM aggregation products. The principles are the same.

    We invest a great deal of time and effort creating tools like these to assist our customers, so most are available only to DCB customers. If you are one of our customers and don't have the required customer access password, please contact your sales representative to obtain your free password.

    AM3440 E&M Operational Summary
    The actual operation of E&M signaling leads is poorly understood by many technicians and engineers. This is a summary of how the AM3440 E&M interfaces operate for Type 1,2,3,4, and 5 E&M configurations. Included are RJ45 E&M Pinouts and descriptions for A-side and B-side installations. Download the note in PDF format.

    Propagation Delay Through An IAM.
    A short description of the propagation delays encountered with integrated access multiplexers. Download the note in PDF format.

    Configuring Loop C37.94 cards for the AM3440 and O-9500 IAD
    The Loop C37.94 card is available with a single duplex port or four duplex ports. This paper demonstrates how to configure mode, bandwidth, ALS, and mapping features. Download the note in PDF format.

    Configuring Loop IADs for RADIUS and syslog
    The Loop AM3440, IP6510-LN, and V4150 incorporate RADIUS authentication and authorization, as well as logging capabilities. This paper demonstrates how to configure those features. Download the note in PDF format.

    Async Serial Multi-Vendor Channel Bank Compability
    An analysis of how to achieve asynchronous serial port compability between different vendor's channel banks. Download the note in PDF format.

    Voice Pass-through with Loop Products
    A question about pass through voice DS-0 circuits was recently raised. Loop product mapping provides a choice of "d" for data or "v" for voice to be designated for each DS-0. FXS, FXO and E&M circuits must all be set to "v" for voice. If a DS-0 carrying voice passes in and out of a T1 as a pass through, must this be set to "v" for voice? The answer is "yes". See this paper for details on setting a pass through DS-0 to "v" for voice and for verifying the setting. Download the note in PDF format.

    Mapping between O-9500 T3-M13 and E&M Interfaces Detailed instructions on the procedure for mapping an E&M interface to a T3-M13 interface on the Loop O9500 integrated ulti-services access platform.

    Singaling Bits Definitions on Voice Modules
    A short description of the issues encountered with T1 or E1 CAS (channel associated signaling) bits. Download the note in PDF format.

    1:N Protection Quick Guide Quick Guide covering 1:N Protection using the V4150 Relay Protection Shelf. Download the note in PDF format.

    Application notes specific to the Loop AM-3440, its configuration, and interface cards. Note that many of these interface and tributary cards are used on other products as well:

    Configuring ULSR T1s and Clocking with External Stratum 1 Clocking Sources
    This is an example procedure used to configure ULSR T1s and clocking from external Stratum 1 clocking sources with the AM3440. Download the note in PDF format.

    AM3440 Alarm Reporting
    AM3440 alarms can be reported via the Alarm Relay contacts located on the controller card or as SNMP messages output via the Ethernet Port on the controller card. Here's how to do it.Download the note in PDF format.

    Upgrading AM3440 firmware using Map34
    Upgrading AM3440 firmware can be a daunting task the first time. Using DCB's Map34 software makes it much less intimidating. This paper by one of our engineers demonstrates how to accomplish the upgrade by following step-by-step instructions.Download the note in PDF format.

    Configuring the AM3440 for RADIUS and syslog
    Some Loop Telecom products incorporate RADIUS authentication and authorization, as well as logging capabilities. This paper demonstrates how to configure those features on the AM3440, IP6510-LN, and V4150 models. Download the note in PDF format.

    AM3440 Router Card Comparision Guide
    This is a short note detailing the similarities and differences between the Loop RT, RTA, and RTB router cards used in the AM3440. Download the note in PDF format.

    Mapping - A Quick Start Guide
    This is a "cheat sheet" with information that helps you get started mapping the AM-3440. These DACS have lots of flexibility and these hints will save you time getting them configured. Download the note in PDF format.

    AM3440 Firmware Change affecting Login credentials
    This is a short discussing an AM3440 firmware change starting with controller version 8.24.x. Login now now has two levels with associated passwords. Download the note in PDF format.

    Replacing a redundant controller.
    If an AM3440 with redundant controllers has a loss of one of the controllers, it is a simple procedure to replace the failed controller. Just install the new controller in place of the failed controller in a hot swap procedure. No need to power down the system to replace a failed controller. This note discusses how to manage differing firmware versions in this situation.Downlaoad the note in PDF format.

    Configuring the AM3440 RT card
    This is a short example procedure showing how to configure the AM3440 RT card for bridge mode. Download the note in PDF format.

    Configuring the Router B Card with all 8 ports as a switch - How-To
    This is an example procedure showing how to configure the AM3440 RTB card to use all 8 ports as an ethernet switch. Download the note in PDF format.

    Configuring the RTA or RTB Router Cards for bridging. A simple, quick How-To guide

    This is a short example procedure showing how to configure the AM3440 Router B card with all 8 ports in switch mode. Download the note in PDF format.

    Configuring the RTA Router Cards for static Routing with multiple route destinations. A simple, quick How-To guide on configuring three remote destination routes.

    Configuring the AM3440 RT Card for Bridge Mode - How-To
    This is a short example procedure showing how to configure the AM3440 RT card for bridge mode. Download the note in PDF format.

    Configuring the AM3440 Router B Card for Combined Bridge and Router Mode - How-To
    This is a short example procedure showing how to configure the AM3440 Router B card for combined route and bridge mode. Download the note in PDF format.

    Mapping - AM-3440 to AM-3440 Sample maping and Loopback Test using FOM Cards
    This is an example procedure mapping with information that helps you get started mapping the AM-3440. This exmaple illustrates mapping and a loop back test to verify correct operation. These DACS have lots of flexibility and these hints will save you time getting them configured. Download the note in PDF format.

    AM3440 Firmware Updating for Dual Controller Installations
    The procedure for updating firmware in an AM-3440 having dual controller cards may be daunting. This paper details a straight forward method for that procedure. Download the note in PDF format.

    Configuring the AM3440 T1 Loopbacks
    A "cheat sheet" illustrates how to set up the T1 ports to allow the local and remote loopback commands to function. Download the note in PDF format.

    Configuring the AM3440 Terminal server Card
    A "cheat sheet" illustrating how to configure the Terminal Server card for access via a remote AM3440 router card. Download the note in PDF format.

    Configuring the AM3440 for In Band management using Point to Point and Multiple Locations
    A "cheat sheet" illustrating how to configure the in-band management for the AM3440. Download the note in PDF format.

    Configuring the 8DBRA card for the AM3440 and V4200.
    A "cheat sheet" illustrating how to configure the 8DBRA card. These cards are often used for utility customer SCADA networking by oversampling 9600bps asynchronous data. Download the note in PDF format.

    Configuring the 8DBRA card to present RS232 data on a single incoming DS0 duplicated on 3 of the RS232 ports on a local 8DBRA card.
    This application is typically used for SCADA where multiple devices are polled from the same host port and the data arrives for all three devices over a single DS0. Download the note in PDF format.


    Ordering Information


    Detailed order information is available on the downloadable detailed data sheet here.

    Pricing: Please phone a DCB product specialist at 800-432-2638 for pricing and configuration options.


    Data Comm for Business Inc.
    2949 County Road 1000 E
    Dewey, Il 61840
    Voice: 217-897-6600
    Toll Free: 800-4-DCB-NET
    Toll Free: 800-432-2638
    Email: Contact Page
    Web: www.dcbnet.com
    Fax: 217-897-8023
    All DCB web pages copyright 1995- Data Comm for Business, All rights reserved.
    EtherPath, EtherSeries, EtherPoll, EtherBridge and EtherModem are Registered Trademarks of Data Comm for Business, Inc.
