Link Layer 2 Encryption Performance Above 900 Mbps Using Gigabit Ethernet Interfaces
Contains FIPS 140-2 Level 1 Validated Encryption Module

High Performance Layer Two Encrypter

  • 128, 192, or 256 bit AES encryption available
  • Throughput at rates above 900 Mbps @ AES-128
  • FIPS 140-2 Level 1 validated encryption module
  • 1000BaseT encryption for 10/100/1000BaseT ethernet ports
  • Easy configuration or Plug and Play layer 2 security
  • Installs in pairs for point-to-point drop in use
  • Extensive statistics logging and diagnostic tools
  • Tunnels ALL ethernet protocols
  • Tunnels multicast traffic
  • 802.1Q encryption - Tunnels 802.1Q tagged V-Lan trunksvia non-802.1Q links
  • Inter-site VLAN encryption, VLAN encrypted link
  • Ethernet to ethernet encryption for layer 2 security
  • Links LAN to LAN to bridge sites together
  • Drop-in microwave link encrypter
  • Common Criteria encryption appliance
  • Layer 2 Raw ethernet transport between units
  • Layer 2 FIPS 140-2 validated product

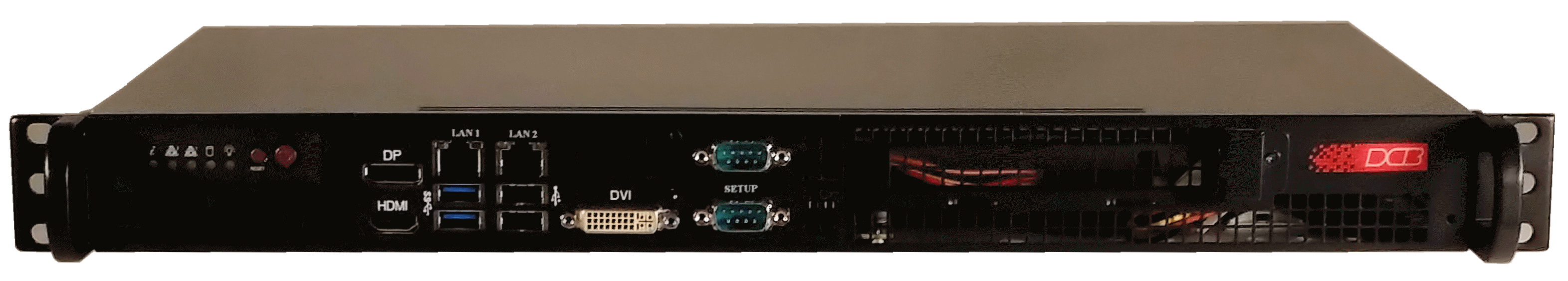

  • Compact 1U high: standalone or rack-mount
Layer Two Encrypter
Layer Two Encrytper
Encrypting Cloud Network Resources


Specifications How To Order

Indicators (front panel)

Read the Quick Start Guide
Application Notes & Manual
How to Order

Layer Two Encrytper
High Performance Layer Two Encrypter

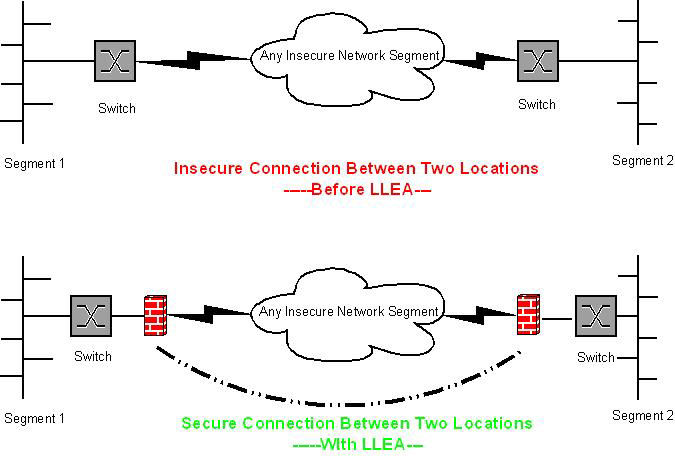

LLEA provides layer 2 security by allowing two layer 2 network segments to be securely bridged across an insecure network segment such as layer 2 cloud services. They are used in pairs to create a point-to-point layer 2 tunnel between the two layer 2 segments. Network traffic that traverses the the insecure network segment is protected against eavesdropping and tampering by the layer 2 tunnel. In addition, the LLEA devices protect the network segments from malicious packet injection with layer 2 encryption and authentication.

AES encryption and HMAC-SHA1 for data integrity are used in the LLEA. The Diffie-Hellman algorithm is used for session key establishment. Encryption keys are changed every 6-hours or 2 billion packet, whichever comes first. All cryptographic operations are provided by an embedded FIPS 140-2 Level 1 validated cryptographic module.

The original Ethernet packets are completely encapsulates by LLEA for transport across the insecure network segment. To minimize the overhead of encapsulation and encryption, the LLEA will coalesce packets where possible for high performance on gigabit ethernet encryption links. This reduces the number of small packets that traverse the insecure network often improving the throughput of a slower network link.

At greater than 900 Mbps, measured throughput on a gigabit link is outstanding. Download a throughput measurement certificate here for full performance details.

This link layer encrypter can transport both standard Ethernet packets and 802.1q tagged VLAN packets. Since packets are encapsulated when transported across the insecure network segment, this has the effect of tunneling 802.1q across a network segment that may not support it while providing 802.1q encryption. Inter-site VLAN encryption has a side benefect... the packets that traverse the insecure network segment will always appear as standard Ethernet packets.

The LLEA is a simple, drop-in gigabit encryption appliance ideally suited for Federal common criteria encryption needs. It is easily applied to high speed microwave links. Microwave link encryption is required for many streaming video, security system connections, and common criteria encryption in building-to-building links.

LLEA requires very little configuration. In fact, it is possible to deploy a pair with no configuration at all. Just place them in-line and turn them on. Typical configuration consists of setting an IP address, a shared secret, and selecting the encryption level. Configuration is web based with a click-for-help hyperlink on every configuration item.

This is a layer 2 FIPS 140-2 compliant product using a validated encryption module. Due to the encryption employed in these products, they are export controlled items and are regulated by the Bureau of Industry and Security (BIS) of the U.S. Department of Commerce. They may not be exported or shipped for re-export to restricted countries in Country Group E:1. They are shippable to most other countries with proper licensing. Please contact us if you are considering exporting these.



  • Two Ethernet ports: 10/100/1000 BaseT interfaces
  • Sustained full duplex throughput of over 900 Mbps @ 256 bit AES
  • Measured latentcy of 66.25 us for 74 byte Ethernet packets and 125 us for 1514 byte Ethernet packets.
  • Point to point via raw ethernet
  • Protocol Features AES 128, 192, 256 bit encryption
  • Web browser configuration and management from local trusted interface
  • Default IP address:
  • Tunnels multicast packets and all ethernet protocols
  • The LLEA uses an embedded FIPS 140-2 validated cryptographic module (Certificate #1747) running on a Linux x86 platform per FIPS 140-2 Implementation Guidance section G.5 guidelines





    Application Notes:

    Layer 2 EncrypterLayer 2 Encrytper

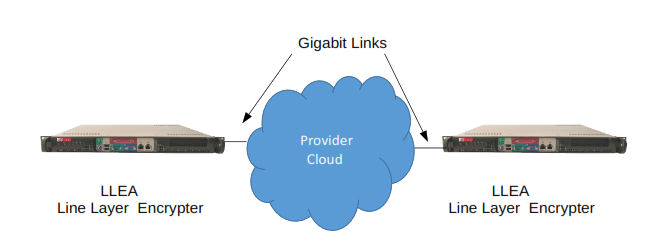

    Encrypting Cloud Network Resources

    Click here to download a copy of the manual.
    Download the Quick Start Guide
    Download PDF showing advantages of protecting cloud network resources

    How to Order

    Due to the nature of this product, it is not offered through our on-line store. Please phone us at 800-432-2638 or 217-897-6600 or see our contact page to discuss your encryption applicaions.

    Item Number DESCRIPTION Price  Each
    LLEA Ethernet Link Layer 2 Encryptor with two 10/100/1000BaseT ports, 120 VAC power
    $ 8695
