AM-3440-E Ethernet Transport Ready DACS.

The AM-3440 is ideal for transitioning from TDM to Packet Switch technology!

AM-3440-E Access Multiplexer



AM-3440-E Front view


Description
General Specifications
How to Order
Download a printable, detailed data sheet
Application Notes
Applications

Item Capacity
Chassis2U
# of Combo GbE2
# of Mini-slots5
7 with HS-Slot adapter
# of HS-slots2
Max. E1 Channels28
Max. T1 Channels 28
Cross-Connect
Backplane Capacity
184 Mbps


DESCRIPTION

TThe Loop-AM3440-E is the latest product in the Loop Access DCS-MUX series that combines various access interfaces and transport over GbE or E1 uplinks. The Loop-AM3440-E supports SAToP/ CESoPSN/ MEF8 Pseudowire Protocols to transport TDM data streams with timing information over packet switched network.

The Loop-AM3440-E provides full non-blocking DS0 cross-connect matrix for up to 28 x E1/T1 + 64 Bundles. Traffic grooming and segregation between the TDM interfaces and the Pseudowires provides flexibility and efficiency, and makes the Loop-AM3440-E an ideal solution for DACS (Digital Access Cross-Connect System) and ADCB (Add/Drop Channel Bank) applications.

With hot-pluggable mini size slots design, the Loop-AM3440-E provides access for E1, T1, FOM, FXS, FXO, E&M, Magneto*, C37.94, RS232, X.21, EIA530 and V.35 interfaces. These interfaces are compatible with other Loop products.

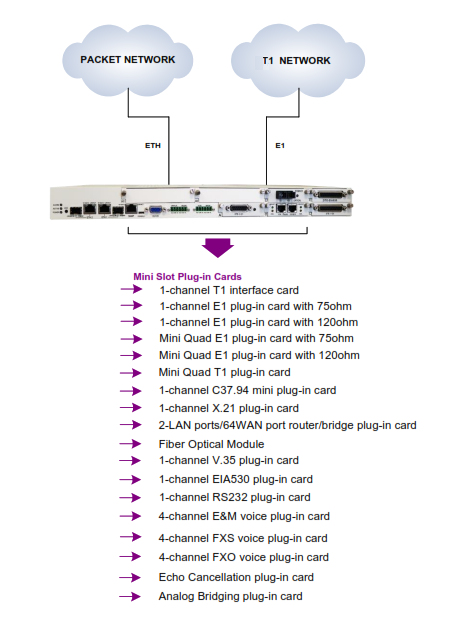

Interface Cards and Application



Specifications

  • Cross Connect Capability
  • Ethernet Interface
  • Pseudowires
  • Timing
  • Management
  • Mechanical and Electrical

    Application Notes


    These application notes cover many aspects of Integrated Access Multiplexer applications. While some are specific to particular products, many are applicable to most any of our channel bank, IAD, or TDM aggregation products. The principles are the same.

    We invest a great deal of time and effort creating tools like these to assist our customers, so most are available only to DCB customers. If you are one of our customers and don't have the required customer access password, please contact your sales representative to obtain your free password.

    AM3440 E&M Operational Summary
    The actual operation of E&M signaling leads is poorly understood by many technicians and engineers. This is a summary of how the AM3440 E&M interfaces operate for Type 1,2,3,4, and 5 E&M configurations. Included are RJ45 E&M Pinouts and descriptions for A-side and B-side installations. Download the note in PDF format.

    Propagation Delay Through An IAM.
    A short description of the propagation delays encountered with integrated access multiplexers. Download the note in PDF format.

    Configuring Loop C37.94 cards for the AM3440 and O-9500 IAD
    The Loop C37.94 card is available with a single duplex port or four duplex ports. This paper demonstrates how to configure mode, bandwidth, ALS, and mapping features. Download the note in PDF format.

    Configuring Loop IADs for RADIUS and syslog
    The Loop AM3440, IP6510-LN, and V4150 incorporate RADIUS authentication and authorization, as well as logging capabilities. This paper demonstrates how to configure those features. Download the note in PDF format.

    Async Serial Multi-Vendor Channel Bank Compability
    An analysis of how to achieve asynchronous serial port compability between different vendor's channel banks. Download the note in PDF format.

    Voice Pass-through with Loop Products
    A question about pass through voice DS-0 circuits was recently raised. Loop product mapping provides a choice of "d" for data or "v" for voice to be designated for each DS-0. FXS, FXO and E&M circuits must all be set to "v" for voice. If a DS-0 carrying voice passes in and out of a T1 as a pass through, must this be set to "v" for voice? The answer is "yes". See this paper for details on setting a pass through DS-0 to "v" for voice and for verifying the setting. Download the note in PDF format.

    Mapping between O-9500 T3-M13 and E&M Interfaces Detailed instructions on the procedure for mapping an E&M interface to a T3-M13 interface on the Loop O9500 integrated ulti-services access platform.

    Singaling Bits Definitions on Voice Modules
    A short description of the issues encountered with T1 or E1 CAS (channel associated signaling) bits. Download the note in PDF format.

    1:N Protection Quick Guide Quick Guide covering 1:N Protection using the V4150 Relay Protection Shelf. Download the note in PDF format.

    Application notes specific to the Loop AM-3440, its configuration, and interface cards. Note that many of these interface and tributary cards are used on other products as well:

    Configuring ULSR T1s and Clocking with External Stratum 1 Clocking Sources
    This is an example procedure used to configure ULSR T1s and clocking from external Stratum 1 clocking sources with the AM3440. Download the note in PDF format.

    AM3440 Alarm Reporting
    AM3440 alarms can be reported via the Alarm Relay contacts located on the controller card or as SNMP messages output via the Ethernet Port on the controller card. Here's how to do it.Download the note in PDF format.

    Upgrading AM3440 firmware using Map34
    Upgrading AM3440 firmware can be a daunting task the first time. Using DCB's Map34 software makes it much less intimidating. This paper by one of our engineers demonstrates how to accomplish the upgrade by following step-by-step instructions.Download the note in PDF format.

    Configuring the AM3440 for RADIUS and syslog
    Some Loop Telecom products incorporate RADIUS authentication and authorization, as well as logging capabilities. This paper demonstrates how to configure those features on the AM3440, IP6510-LN, and V4150 models. Download the note in PDF format.

    AM3440 Router Card Comparision Guide
    This is a short note detailing the similarities and differences between the Loop RT, RTA, and RTB router cards used in the AM3440. Download the note in PDF format.

    Mapping - A Quick Start Guide
    This is a "cheat sheet" with information that helps you get started mapping the AM-3440. These DACS have lots of flexibility and these hints will save you time getting them configured. Download the note in PDF format.

    AM3440 Firmware Change affecting Login credentials
    This is a short discussing an AM3440 firmware change starting with controller version 8.24.x. Login now now has two levels with associated passwords. Download the note in PDF format.

    Replacing a redundant controller.
    If an AM3440 with redundant controllers has a loss of one of the controllers, it is a simple procedure to replace the failed controller. Just install the new controller in place of the failed controller in a hot swap procedure. No need to power down the system to replace a failed controller. This note discusses how to manage differing firmware versions in this situation.Downlaoad the note in PDF format.

    Configuring the AM3440 RT card
    This is a short example procedure showing how to configure the AM3440 RT card for bridge mode. Download the note in PDF format.

    Configuring the Router B Card with all 8 ports as a switch - How-To
    This is an example procedure showing how to configure the AM3440 RTB card to use all 8 ports as an ethernet switch. Download the note in PDF format.

    Configuring the RTA or RTB Router Cards for bridging. A simple, quick How-To guide

    This is a short example procedure showing how to configure the AM3440 Router B card with all 8 ports in switch mode. Download the note in PDF format.

    Configuring the RTA Router Cards for static Routing with multiple route destinations. A simple, quick How-To guide on configuring three remote destination routes.

    Configuring the AM3440 RT Card for Bridge Mode - How-To
    This is a short example procedure showing how to configure the AM3440 RT card for bridge mode. Download the note in PDF format.

    Configuring the AM3440 Router B Card for Combined Bridge and Router Mode - How-To
    This is a short example procedure showing how to configure the AM3440 Router B card for combined route and bridge mode. Download the note in PDF format.

    Mapping - AM-3440 to AM-3440 Sample maping and Loopback Test using FOM Cards
    This is an example procedure mapping with information that helps you get started mapping the AM-3440. This exmaple illustrates mapping and a loop back test to verify correct operation. These DACS have lots of flexibility and these hints will save you time getting them configured. Download the note in PDF format.

    AM3440 Firmware Updating for Dual Controller Installations
    The procedure for updating firmware in an AM-3440 having dual controller cards may be daunting. This paper details a straight forward method for that procedure. Download the note in PDF format.

    Configuring the AM3440 T1 Loopbacks
    A "cheat sheet" illustrates how to set up the T1 ports to allow the local and remote loopback commands to function. Download the note in PDF format.

    Configuring the AM3440 Terminal server Card
    A "cheat sheet" illustrating how to configure the Terminal Server card for access via a remote AM3440 router card. Download the note in PDF format.

    Configuring the AM3440 for In Band management using Point to Point and Multiple Locations
    A "cheat sheet" illustrating how to configure the in-band management for the AM3440. Download the note in PDF format.

    Configuring the 8DBRA card for the AM3440 and V4200.
    A "cheat sheet" illustrating how to configure the 8DBRA card. These cards are often used for utility customer SCADA networking by oversampling 9600bps asynchronous data. Download the note in PDF format.

    Configuring the 8DBRA card to present RS232 data on a single incoming DS0 duplicated on 3 of the RS232 ports on a local 8DBRA card.
    This application is typically used for SCADA where multiple devices are polled from the same host port and the data arrives for all three devices over a single DS0. Download the note in PDF format.


    How to Order

    Please print out the detailed data sheet with ordering options ( from here) and phone a DCB product specialist at 800-432-2638 for pricing and configuration options.
