RS-232 to V.35 & V35 to RS232 Interface Converter



Connect RS-232 Customer Equipment to V.35 Communications Equipment




FEATURES
DESCRIPTION
SPECIFICATIONS

General
Indicators
Physical/Electrical

APPLICATION

HOW TO ORDER


FEATURES

DESCRIPTION

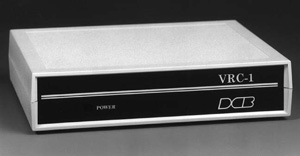

The DCB VRC-1 is an RS-232 to V.35 interface converter, ideal for use with the DCB SR and SPL series multiplexers. Other equipment that may be converted includes terminals, personal computers, bridges, routers, work stations, etc. The VRC-1 will work with any terminal device that has an RS-232 interface and must connect to communications equipment with a V.35 interface.

The VRC-1 is powered by a wall mounted power supply and is designed to replace unreliable unpowered interface converters. The VRC-1 will operate at data rates up to 128 Kbps. The VRC-1 has a DB-25 female connector for the RS-232 connection to terminal devices and a female M34 connector for connection to the V.35 communications device.

The VRC-1 is very easy to install. There are no switches to set, nothing to configure. Apply power, attach devices to be linked, and installation is complete. All standard control signals and clocks are converted. The single LED on the faceplate is the power indicator.


SPECIFICATIONS
General
RS-232 to V.35 converter
DB-25 Female Connector for RS-232
M34 Female Connector for V.35
RS-232 connects to terminal devices
V.35 connects to communications equipment
Synchronous interface
Signals: Transmit Data, Receive Data, Transmit Clock, Receive Clock, Request to Send, Clear to Send, Data Set Ready, Data Terminal Ready, Data Carrier Detect, External Transmit Clock, Ring Indicator
Indicators
Power
Physical/Electrical
120 VAC, 3 Watts
Wall mount power transformer
7" x 5 1/4" x 1 1/2"
1 lb

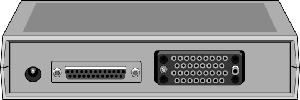

Rear view of VRC-1

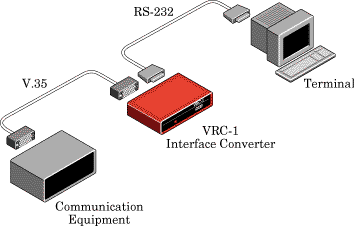

APPLICATION


Need it fast?  Buy on-line or call toll free 800-432-2638!

Item Number Description Price Buy Now!
VRC-1 V.35 DCE to RS-232 DTE Converter w/ 120VAC power input $ 295 Qty:
