Data Comm for Business, Inc.

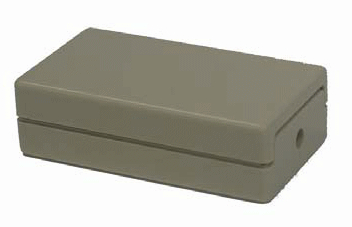

T-1 Tapping Bridge Box

Monitor the dialogue between T1 networks

Supports up to two E1 or T1 lines
Easy to install
Compatible with all common T1/E1 interfaces
Ideal for small scale CALEA T-1 connections

DESCRIPTION

The T1-Tap E1/T1 Tapping Bridge Box provides users an economical solution to monitor the dialogue between T1 or E1 networks. Through the small tapping bridge box, users can gain the complete data, transmitted between E1/T1 network devices, very easily without upsetting the impedance of the line. Each Tapping Bridge Box can support users to monitor up to two E1/T1 network devices (see the applications diagram for details).

SPECIFICATIONS

Tag Loss Signal For T1, -1.05 dB
Tag Loss Signal For E1, -1.25 dB
Impedance For T1, 90 ohm
Impedance For E1, 105 ohm
Tapped Signal Power For T1, -18.9 dB
Tapped Signal Power For E1, -17.5 dB

Physical / Electrical

Connector Screw down type (four)
Dimensions 22 x 6 x 29 cm (WxHxD)
Temperature 0 -50°C

Humidity 0-95% RH (NON-CONDENSING)

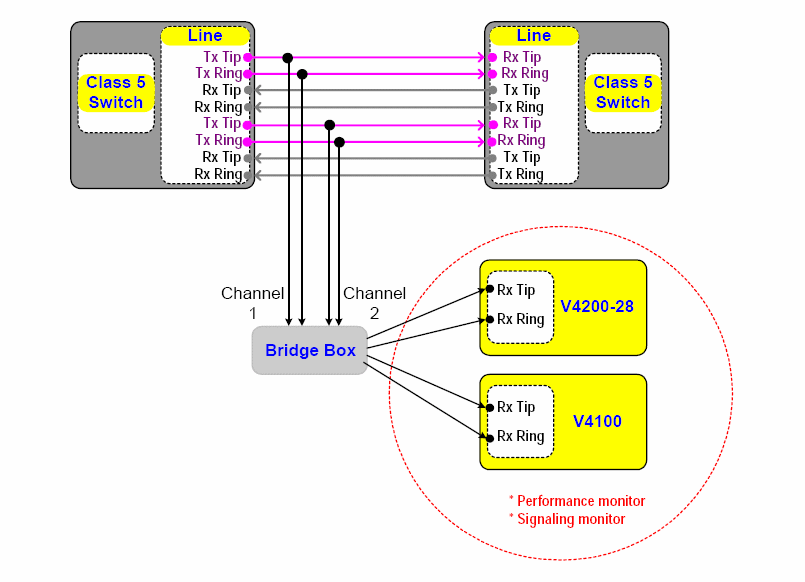

APPLICATION

Item Number	Description	Price	Buy Now!
Need it fast? Buy on-line or call toll free 800-432-2638!
T1-Tap	T-1 Tap Bridging Box	$ 95	Qty:
