Data Comm for Business, Inc.

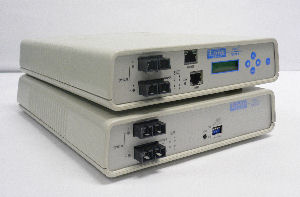

Loop O-9310 Fiber Optic Mux

Up to 4 E1 links on one fiber
Support 10/100 BaseT Ethernet: Bridge mode, maximum transmission bandwidth 22Mbps
Support one V.35, X.21, RS449/V.36, RS232/V.28, EIA530 or EIA530A interface
Supports multiple optical fiber transmission distances
Both single mode and multi-mode fiber modules available
Supports BNC or RJ45 connectors for 4 E1s
Local Console or Ethernet for SNMP management
Remote SNMP management and LoopView management
Slave unit can be managed remotely
Non-manageable model is configured through DIP switches
Supports alarm relay and alarm cut off
LED status indicators
RoHS Compliant
Supports Optical 1+1 protection

Features
Description
Specifications
Optical Fiber Interface
Optical Fiber Characteristics
E-1 Interface
T-1 Interface
Bridge Interface
SNMP
DTE Interface
Console
Diagnostics
Physical/Electrical
How to Order
Applications

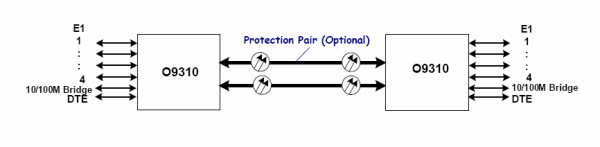

Typical Installation

FEATURES

Up to 4 E1 links on one fiber
Support 10/100 BaseT Ethernet: Bridge mode, maximum transmission bandwidth 22Mbps
Support one V.35, X.21, RS449/V.36, RS232/V.28, EIA530 or EIA530A interface
Supports multiple optical fiber transmission distances
Both single mode and multi-mode fiber modules available
Supports BNC or RJ45 connectors for 4 E1s
Local Console or Ethernet for SNMP management
Remote SNMP management and LoopView management
Slave unit can be managed remotely
Non-manageable model is configured through DIP switches
Supports alarm relay and alarm cut off
LED status indicators
Supports Optical 1+1 protection
RoHS Compliant

DESCRIPTION

The O-9310 can multiplex up to 4 T1 or E1 signals for transmission over an optical fiber, resulting in longer reach without repeaters and superior performance compared to copper media.

The O-9310 also supports an optional 10 /100 BaseT ethernet bridge port, an optional V.35, X.21, RS449/V.36, RS232/V.28 or EIA530 or EIA530(A) with DTE/DCE selection.

Available in a cost-effective non-CPU model with DIP switch setup or an intelligent model with SNMP and remote configuration capability. Basic non-manageable model without CPU provides system setup and loopback by DIP switches setting. Application for the Optical T1/E1 extender include fiber connected extensions for LAN, WAN, SONET/SDH, ATM and DLC.

SPECIFICATIONS

Optical Fiber Interface

Optical Fiber Characteristics

Source MLM Laser System	Gain 30 dB
Wavelength 1310 Â± 50 nm, 1550 Â± 40 nm	Line Code Scrambled NRZ
Power -26 or -8 dBm	Detector Type PIN-FET
Receiver Sensitivity -38 dBm at BER < 10-10	Fiber Type Single mode
Optical Line Rate 155.52Mbps	Protection Optional 1+1 APS
50 Km reach	NOTE: Longer or shorter, 15 to 120Km, on special order.

Optical Module	Fiber Direction	Wavelength (nm)	Connector	Distance (km)	Power (dB)
Single	Dual uni-direction	1310	SC (Subscriber Connector)	30	20
		1310	SC (Subscriber Connector)	50	30
		1310	FC (Fiber Connector)	30	20
		1550	SC (Subscriber Connector)	20	12
		1550	SC (Subscriber Connector)	100	40

Single	Single bi-direction (master)	1310/1550	SC (Subscriber Connector)	30	20
	Single bi-direction (slave)	1310/1550	SC (Subscriber Connector)	30	20

For discussion on whether to choose uni-directonal or bi-directional fiber option, see the white paper here.

E-1 Line Interface

Number of E1 lines 4	Impedance 120 ohm twisted pair, 75 ohm for BNC
Line Rate 2.048 Mbps +/- 50 ppm	Connector RJ48C, BNC
Line Code HDB3	Output Signal ITU G.703

T-1 Line Interface

Number of T1 lines 4
Line Rate 1.544 Mbps Â± 50 bps	Output Signal DSX1
Line Code AMI or B8ZS	Framing D4/ESF (selectable)
Input Signal ABAM cable length up to 655 feet	Connector RJ48C

Bridge Interface

10/ 100 Mbps half/ full duplex ethernet bridging and 22 Mbps operation on the HDLC port
ANSI/ IEEE Std. 802.1D MAC Bridging capabilities (without spanning tree algorithm)
Automatic MAC table learning and aging
Supports VLAN and extended Ethernet frame support

DTE Interface
Port Number 1	Connector DB25S
Data Rate Nx64kbps (N=1~32)	Clock Mode External, Internal, Received (Selectable)
Type Software-selectable V.35, X.21, RS449/V.36, RS232/V.28, EIA530 and EIA530A
Connector RJ45 at rear panel
Data Rate Up to 64Kbps async

Connector DE9 on front panel

Console	SNMP
	Protocol Telnet
Electrical RS232 interface	Connector RJ45 on front panel
Protocol Menu driven VT-100 terminal
Baud Rate 9600, 19200, 38400, 57600, 115200

Diagnostics Test

Optical Fiber Local and remote loopbacks
T1 and E1 Lines Local and remote loopbacks

Physical/Electrical

Dimensions 215 x 55 x 188 mm (W x H x D)
Mounting Stand-alone
Power Source (AC) 100 to 240 Vac, 50/ 60 Hz
Power Source (DC) 24Vdc: 18-36 Vdc ; 48Vdc: 36-72 Vdc
Power Consumption < 10 W
Temperature Range 0Â°C to 50Â°C
Humidity 0% - 95% RH (non-condensing)

Ordering Information

Please call for pricing and ordering information.

Typical Pricing:
List price for a O-9310 having four T-1s over a single pair of 1310 nm fiber using SC connectors, 100-220 Vac power supply is $939 .
