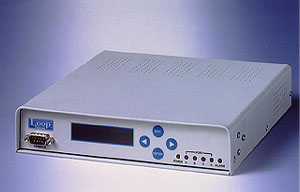

Loop 4300 E-1 to T-1 Converter and T-1 to E-1 Converter

Convert E1 to T1 or T1 to E1 with DACS capability

Full translation of digitized voice between E1 and T1, including A law to mu law and signaling format
2, 3, or 4 ports, each provisioned for either E1 or T1 line interface, long or short haul
Up to 2 ports may be V.35 interface
Each DS0 time slot from any port can be assigned to any DS0 time slot of any port
Each DS0 can be designated as a 64 Kbps clear channel, or as a voice channel
2-line by 16-character LCD for maintenance, performance monitoring, and administration
Telnet and SNMP management via included Ethernet port
Multicolor LED indicators for each of 4 line interfaces

Features
Description
Specifications management
Controls
Front Panel
Network Management Port
T1 Interfaces
E1 Interfaces
Performance Monitor
Physical/Electrical
How to Order
Applications
Printable Data Sheet

Full translation of digitized voice between E1 and T1, including A law to mu law and signaling format
2, 3, or 4 ports, each provisioned for either E1 or T1 line interface, long or short haul
Up to 2 ports may be V.35 interface
Each DS0 time slot from any port can be assigned to any DS0 time slot of any port
Each DS0 can be designated as a 64 Kbps clear channel, or as a voice channel
2-line by 16-character LCD for maintenance, performance monitoring, and administration
Telnet and SNMP management via included Ethernet port
Multicolor LED indicators for each of 4 line interfaces

DESCRIPTION

This is a ful featured E1 to T1 converter (or T1 to E1 Converter).

The Loop-V 4300 Mini DACS E1/T1 converter provides both DS0 and nX64 Kbps cross-connect between any T1 and E1 ports and E1 to T1 format conversion functions. The E1 to T1 conversion includes line format, A-law to mu-law conversion, and signaling conversion. The conversion function is quite useful when extending foreign E1 lines into the North American T1 network. This unit is suitable for applications involving 2, 3, or 4 ports.

SPECIFICATIONS

E1 Port

Network Line Interface(E1)

Line Rate 2.048 Mbps 50 ppm
Framing ITU G.704
Line Code AMI / HDB3
Connector BNC/RJ48C
Input Signal ITU G.703
Output Signal ITU G.703
Electrical 75ohm Coax/120ohm twisted pair

T1 Port

Performance Monitor

Performance Storage E1: Last 24 hours performance in 15 minutes interval register and last 7 days in 24 hours summary T1: The last 24 hours performance in 15-minute intervals
Monitor Registers E1: Line, user, D&I port, and remote site T1: Line, user, and remote site (in ESF mode only)
Performance Reports E1: Reports include Date& Time, Error Sec Unavailable Second, Bursty Error cond, Severe Error Second, Degraded Minutes, and Controlled Slip Second. Also available in Statistics (%) T1: Reports include Date&Time, Error Second, Unavailable Second, Bursty Error Second, Severe Error Second, Controlled Slip Second, and Loss of Frame Count
Alarm History Reports include Date&Time, Alarm Type (i.e. Master Clock Loss, Yellow Alarm, AIS, LOS, BPV, ES, CSS), and Location (i.e. line, PORT A, B, C, D )
Alarm Queue Contains 40 alarm records which record the latest alarm type, location, and Date&Time
Diagnostics Line Loopback, Payload Loopback, and Local Loopback

Management

Network Management via ethernet port (SNMP or telnet access) or console port.

Ethernet Port

Connector RJ45 in rear
Protocol Telnet and Embedded SNMP

Console Port

Connector DB9 at Front Panel
Electrical RS232 interface
Protocol Menu driven VT-100 terminal

Controls

Keypad 4 keys: left arrow, right arrow, ESC, and ENTER

Front Panel

LCD 2-line by 16-character display
LED 6: Power, Port A, Port B, Port C, Port D, Alarm

Physical/Electrical

Dimensions 8 7/16" x 1 3/4" x 7 7/8" (WxHxD)
Mounting Desk-top stackable, 19/23 inch rack mountable, two units side-by-side
Power 20-60Vdc / 90-230Vac, 5 Watts
Humidity 0%-95% RH (non-condensing)
Temperature range 0-50 Deg. C.

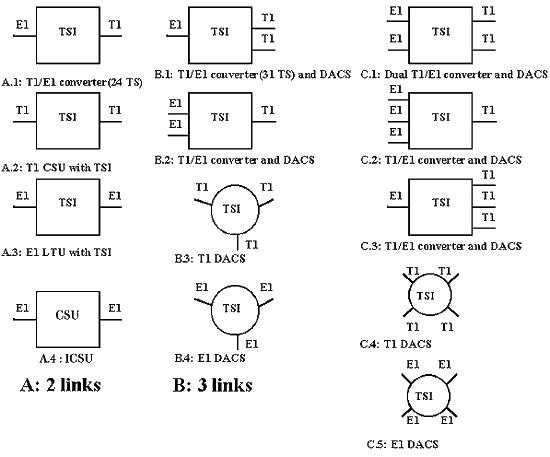

APPLICATION

In all configurations, a maximum of two ports may be V.35 interfaces.

How to Order

Please phone a DCB product specialist at 800-432-2638 for pricing and configuration options.

Loop-V 4300 M Loop-V 4300M Main Unit with 2 Interfaces (specifyt Interfaces) $ Call

Loop-V 4300 T1 T-1 Interface Additional Port for above $ Call

Loop-V 4300 V.35 V35 Interface Additional Port for above $ Call

Loop-V 4300 E1 E-1 Interface Additional Port for above $ Call

Loop-V SNMP SNMP Management Option for above Call

To order specify:

Loop-V 4300-AA-BB-CC-DD-AJ-SNMP-PP
Where each AA, BB, CC, and DD can be:

E1 - E1 long haul & short haul

T1 - T1 short haul & short haul

V35- V.35 DCE interface

AJ : advanced jitter

AA and BB must be specified CC, DD, AJ, are optional SNMP is standard and must be included PP : DC or AC for power option

Example:

Loop-V 4300 T1-E1-E1-SNMP-AC is a unit with one T1 port, two E1 ports,and SNMP. Power is 90-230 Vac.
