DCB Spread Spectrum DCB-115 ISM Band Wireless Modem

Data Comm for Business, Inc.

DCB-115/115H Wireless Transceiver

Frequency Hopping Spread Spectrum
Range to 20 Miles
900 MHz (2.4 Ghz available)
Asynchronous 1.2 to 57.6 Kbps full duplex, 115.2 Kbps half duplex
Point to Point and Point to Multipoint
RS-232 Interface

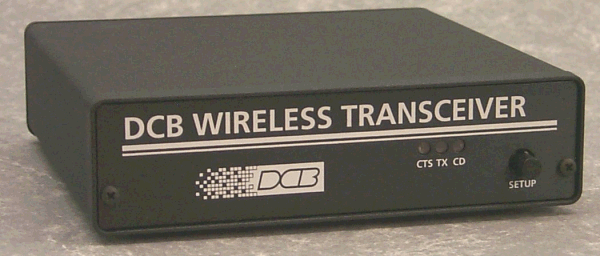

DCB-115/115H WIRELESS SPREAD SPECTRUM DATA TRANSCEIVER

FEATURES
DESCRIPTION
SPECIFICATIONS
APPLICATION

FEATURES

Frequency Hopping Spread Spectrum
Range to 20 Miles
900 MHz
Asynchronous 1.2 to 57.6 Kbps full duplex, 115.2 Kbps half duplex
Point to Point and Point to Multipoint
RS-232 Interface

The DCB-115 spread spectrum transceivers provide reliable long range data communications. Using frequency hopping spread technology, Free Wave transceivers are capable of uncompressed data rates of 115.2 Kbps over distances of 20 miles or more. As well as providing long range reliable data links, Free Wave transceivers set up quickly and incur no ongoing fees, unlike cellular and land line communications. Monthly telephone company costs are eliminated.

The DCB-115 transceivers operate point to point or point to multipoint, selectable using any async terminal program. Repeaters may be used to extend the range by programming the DCB-115 to operate as a store and forward unit. With up to two repeaters in a link and external antennas, links of 60 miles and beyond are possible.

Transceivers are assigned unique electronic serial numbers at the factory, providing control of who does and who does not have access to the data. An optional mode allows the transceiver to respond to a set of AT commands. Applications for the DCB series include:

Emergency back up links
Campus links for schools, colleges, manufacturing plants, offices
Home to office links
Computer to computer, terminal or multiplexer links
Lan to lan bridged and routed links

SPECIFICATIONS

General

902-928 Mhz, 2.400-2.475 Ghz GFSK
Spread Spectrum
Frequency Hopping
15 User Selectable Hopping Patterns
1.2 to 57.6 Kbps full duplex, 115.2 Kbps half duplex
Asynchronous RS-232 full duplex
DE-9 9 pin female connector
Point to point, point to multipoint, store and forward repeater operation
32 bit CRC error detection and retransmission
20 mile range
Standard 3 inch whip antenna
Directional and omni-directional external antenna options

Transmitter

Output power = 1 Watt (+30 dBm)
135 dB system gain
15 KHz carrier frequency stability
180 mA

Receiver

-110 dBm @ 10 -4 raw BER, -108 dBm @ 10 -6 raw BER
100 mA

Indicators

Power, Carrier Detect, Clear to Send

Physical/Electrical

120 VAC wall transformer, 10 Watts, 10.5 to 18.0 VDC
Weight 1 lb.
-40 to +75 degees C operation
7 1/2 " x 4 " x 1 5/8 "

How to Order

HOST:

DCB-115	Transceiver, 115.2 Kbps wireless, plastic enclosure	$1,250
DCB-115H	Transceiver, 115,.2 Kbps wireless, aluminum enclosure	$1,300
AAA-1W	1 watt active antenna amplifier	$ 575
DGF900	902-928 MHz band pass filter, provides 20dB rejection of cellular and pager frequencies	$ 100
EAN0900WR	Antenna, replacement whip	$ 15
EAN0900WC	Antenna, open coil 3 dB	$ 95
EAN0900YA	Antenna, 10 dB 6 element Yagi directional	$ 95
EAN0905WB	Antenna, 5 dB elevated feed gain 33" omni with bracket mount	$ 125
EAN0905WC	Antenna, 5dB trilinear elevated feed	$ 100
EAN0906YA	Antenna, 6 dB3 element yagi directional	$ 75
EAN0910WB	Antenna, 3 dB open coil 12" omni, 10' cable	$ 115
EAN0910WX	Antenna, 3 dB open coil 12" omni, 10' cable, mag mount	$ 105
EAN0915WB	Antenna, 5 dB elevated feed gain 33" omni, 10' cable, with bracket mount	$ 195
EAN0915WX	Antenna, 5 dB elevated gain 33" omni, 10' cable, mag mount	$ 185
EAN0920WB	Antenna, 3 dB open coil 12" omni, 20' cable	$ 125
EAN0910WX	Antenna, 3 dB open coil 12" omni, 20' cable, mag mount	$ 115
EAN0925WB	Antenna, 5 dB elevated feed gain 33" omni, 20' cable, with bracket mount	$ 205
EAN0925WX	Antenna, 5 dB elevated gain 33" omni, 20' cable, mag mount	$ 195
EAN0930WB	Antenna, 3 dB open coil 12" omni, 30' cable	$ 135
EAN0930WX	Antenna, 3 dB open coil 12" omni, 30' cable, mag mount	$ 125
EAN0935WB	Antenna, 5 dB elevated feed gain 33" omni, 30' cable, with bracket mount	$ 215
EAN0935WX	Antenna, 5 dB elevated gain 33" omni, 30' cable, mag mount	$ 205
ASC0022SN	Cable, 2 ' coax, straight SMA, male N connectors	$ 30
ASC0102RN	Cable, 10 ' coax, reverse SMA, .24" diam, 1 dB loss	$ 60
ASC0202RN	Cable, 20 ' coax, reverse SMA, .24" diam, 2 dB loss	$ 80
ASC0252RN	Cable, 25 ' coax, reverse SMA, .24" diam, 2 dB loss	$ 100
ASC0252SN	Cable, 25 ' coax, straight SMA, .24" diam, 2 dB loss	$ 100
ASC0752SN	Cable, 75 ' coax, straight SMA, .24" diam, 7 dB loss	$ 125
ASC1002SN	Cable, 100 ' coax, straight SMA, .24" diam, 9 dB loss	$ 150
ASC2004SN	Cable, 200 ' coax, straight SMA, .41" diam, 8 dB loss	$ 225
ASC0025CA	Cable, 25 ' coax, reverse SMA, .41" diam, 1 dB loss	$ 115
ASC0050CA	Cable, 50 ' coax, reverse SMA, .41" diam, 2 dB loss	$ 140
ASC0075CA	Cable, 75 ' coax, reverse SMA, .41" diam, 3 dB loss	$ 155
ASC0100CA	Cable, 100 ' coax, reverse SMA, .41" diam, 4 dB loss	$ 175
ASC0200CA	Cable, 200 ' coax, reverse SMA, .41" diam, 8 dB loss	$ 225
MMT0102RX	Mag mount 10' cable assembly, reverse SMA, no antenna	$ 90
MMT0202RX	Mag mount 20' cable assembly, reverse SMA, no antenna	$ 100
